SG Compact - Signal Generator

Handheld 5.925 - 40 GHz signal generator for professionals

The perfect tool for microwave system analysis and measurement applications

Essential tool for RF field applications like the precise antenna alignment and line-of-sight verification. It has intuitive control and interactive GUI with instant on/off functionality, the resistive touchscreen allows working with gloves on.

1 / 4

Key Characteristics

5.925 - 12.0 GHz
10.0 - 18.0 GHz
17.0 - 24.3 GHz
24.0 - 40.0 GHz

Frequency range

5.925 – 12.0 GHz

Output power range

-3 dBm to +13 dBm

Frequency accuracy

+/- 10 ppm

Adjustable frequency step 1 MHz
Adjustable power step 1 dBm
Signal form Continuous wave
Accuracy +/- 1 dBm*
Output 50 ohm SMA (f)
Interface mini USB 2.0 (1.1)
Battery up tp 4h
Operating temperature

-15°C to +55°C / 5°F to 131°F

Dimensions 128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in
Weight 0.3 kg / 10.6 oz

* Guaranteed throughout all the temperature range

Frequency range

10.0 – 18.0 GHz

Output power range

-3 dBm to +11 dBm

Frequency accuracy

+/- 10 ppm

Adjustable frequency step 1 MHz
Adjustable power step 1 dBm
Signal form Continuous wave
Accuracy +/- 1 dBm*
Output 50 ohm SMA (f)
Interface mini USB 2.0 (1.1)
Battery up tp 4h
Operating temperature

-15°C to +55°C / 5°F to 131°F

Dimensions 128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in
Weight 0.3 kg / 10.6 oz

* Guaranteed throughout all the temperature range

Frequency range

17.0 – 24.3 GHz

Output power range

-3 dBm to +10 dBm

Frequency accuracy

+/- 10 ppm

Adjustable frequency step 1 MHz
Adjustable power step 1 dBm
Signal form Continuous wave
Accuracy +/- 1 dBm*
Output 50 ohm SMA (f)
Interface mini USB 2.0 (1.1)
Battery up tp 4h
Operating temperature

-15°C to +55°C / 5°F to 131°F

Dimensions 128 x 81 x 24 mm / 5.04 x 3.2 x 0.94 in
Weight 0.3 kg / 10.6 oz

* Guaranteed throughout all the temperature range

Frequency range

24.0 – 40.0 GHz

Output power range

-3 dBm to +5 dBm

Frequency accuracy

+/- 10 ppm

Adjustable frequency step 1 MHz
Adjustable power step 1 dBm
Signal form Continuous wave
Accuracy +/- 1 dBm*
Output 50 ohm 2,92mm (f)
Interface mini USB 2.0 (1.1)
Battery up tp 3h
Operating temperature

-15°C to +55°C / 5°F to 131°F

Dimensions

130 x 81 x 28 mm / 5.11 x 3.2 x 1.1 in

Weight

0.4 kg / 14.11 oz

* Guaranteed throughout all the temperature range

HIGHLIGHTS AND BENEFITS

Ultra-compact form factor

Truly hand-held device, designed specifically for convenient outdoor use in a variety of challenging environments.

Compatible with different antenna systems

Can be used with antennas from other manufacturers and radio system.

Resistive LCD Touchscreen

Resistive LCD touchscreen allows to leave your gloves on while operating the unit. Intuitive UI makes it easy to control the unit.

Downloads

Product Brochures
Solution Kit Brochures
Technical Documentation and User Manuals
Accessories Brochures
Spectrum Compact Series
Download
Line-of-Sight Verification Survey Guide
Download
Typical SG Compact Applications with Spectrum Compact
Download
SG Compact User Manual EN v1.3
Download
Line-of-Sight kit antenna J0AA06R001
Download
Riflescope for horn antennas J0AASA01
Download
Horn antennas 3-40 GHz
Download
Tripod for horn antennas J0AASA03
Download

Accessories

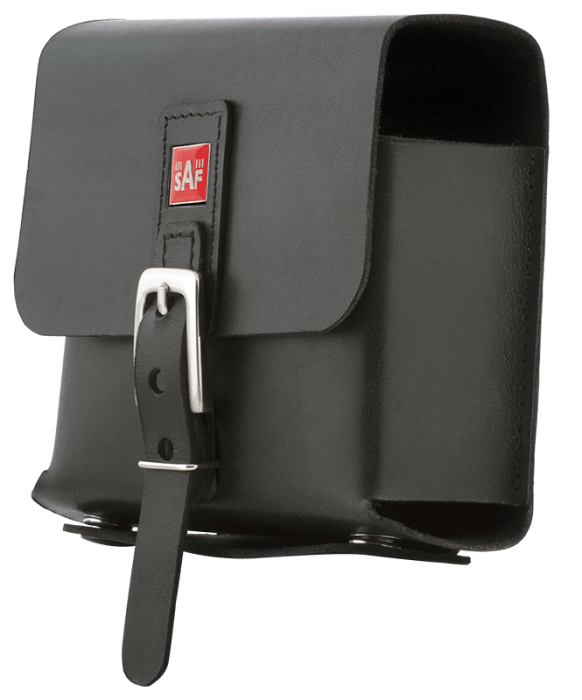

Leather bag

Leather bag for Spectrum Compact.

PART NUMBER

J0APAC11

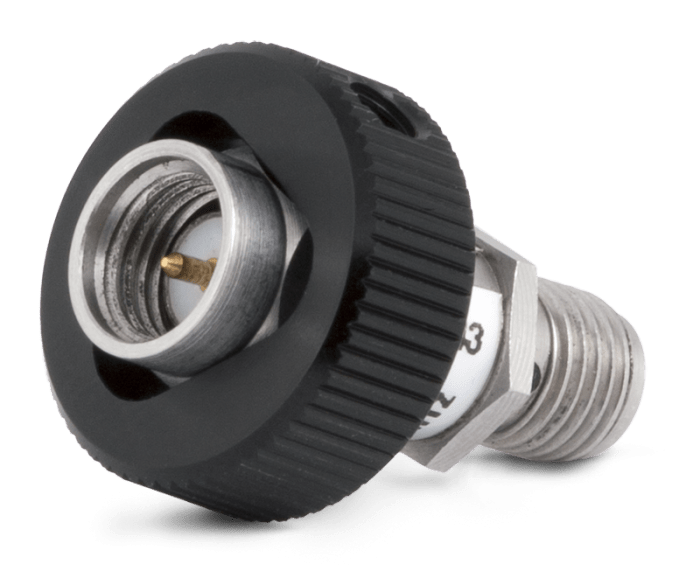

Waveguide adapters

Waveguide adapters with thumb screws; UDR to SMA, 5.38-8.2 GHz; UBR to SMA, 6.6 – 10 GHz, 8.2 – 12 GHz, 10-15 GHz, 12 – 17 GHz and 17 – 24.3 GHz; UBR to 2.92, 22-33 GHz, 26-40 GHz

PART NUMBER

J0S06WA001, J0S07WA004, J0S10WA003, J0S13WA003, J0S15WA003, J0S22WA003, J0S26WA001, J0S38WA001

Protective cases

Watertight, crush proof and dust proof cases for Spectrum Compact. Can hold a kit of 3 or 5 Spectrum Compact units including waveguide adapters and accessories.

PART NUMBER

J0SPAC03, J0SPAC05

Conical horn antennas

Conical horn antennas 6 – 10 GHz, 11 – 15 GHz,17 – 24 GHz and 26 – 40 GHz.

PART NUMBER

J0AA0610HG02, J0AA1115HG01, J0AA1724HG01, J0AA2640HG03

Attenuator kit, 60 dB

Coaxial attenuator kit, 40 + 20 dB, DC to 26 GHz, 2 W.

PART NUMBER

J0A60A02

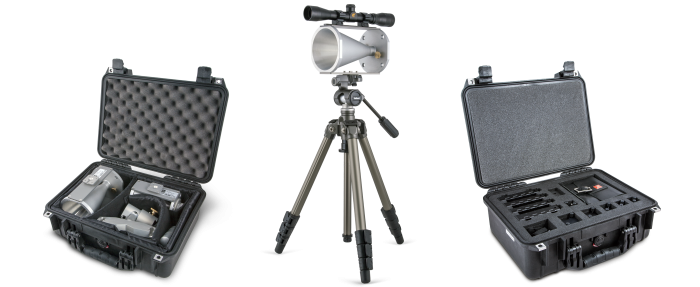

Antenna set in case

Horn antennas 2 pcs., simple mount, water and shock proof case, riflescope and tripod.

PART NUMBER

J0AASC44

Riflescope and tripod

Riflescope and tripod for Sniffer antennas.

PART NUMBER

J0AASA01 and J0AASA03
